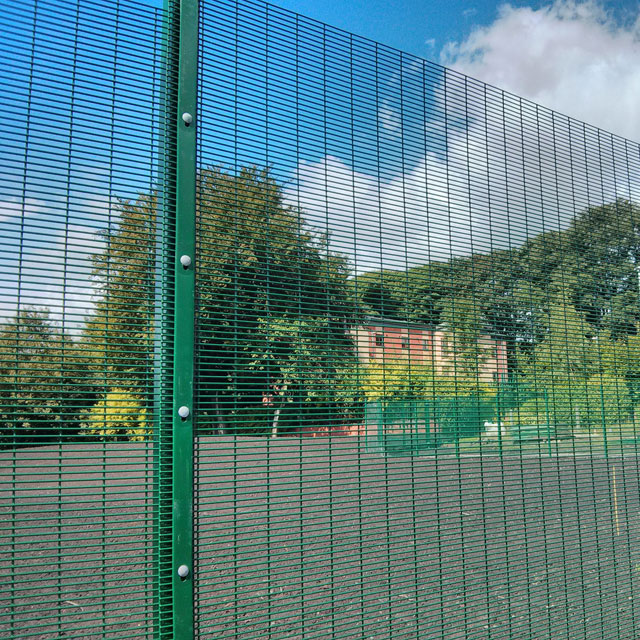

clearvu clearview fence is a much more secure barrier than the standard 358 mesh fence. It has the same wire thickness as the 358 fences, but the size of the mesh opening pattern is more diminutive. The intruder can not climb up with fingers and toes, and conventional bolts or wire cutters cannot cut the anti-climb fencing.

clearvu clearview fence has a more rigid double vertical wire welding structure, which makes it difficult to cross. Anti-climb rigid mesh fencing has the advantages of anti-climbing, anti-cutting, anti-corrosion, and good viewing visibility. Combined with the fence top of razor barbed wire, clearvu clearview fence spikes, or tooth spikes, it becomes ideal high-security fencing for high-end applications, such as prisons, military and power facilities.

clearvu clearview fence features

• Good viewing visibility is a type of high-security clear-view fencing.

• Welded well at each intersection.

• Intrusion-resistant, with a robust double vertical wire design.

• Small mesh aperture, anti-cut, anti-climb, finger-resistant and toe-resistant.

• Corrosion is resistant to zinc aluminium alloy and PVC powder coating.

• Surface finish after welding; every weld point is protected well.

• High strength with fully integrated posts and anti-tamper fixings.

• clearvu clearview fence security toppings are optional.

• Easy for installation and free maintenance.

• Five-year warranty.

clearvu clearview fence Details & Specifications

• Wire: 4 mm steel wire.

• Wire surface finishes galvanic coating after welding and PVC powder coating (Min. 120 microns) or PVC powder painting.

• PVC coated colour: black, dark green, brown, yellow, desert sand, bronze or other colours requested.

• Mesh opening pattern: 70 mm × 8 mm, welded well at each intersection.

• Mesh sheet width: 2515 mm.

• Anti-climb mesh fencing panels and posts.

Note: In the above table, the aperture size is the dimension of each opening in the mesh, the panel length and heights are the dimensions of the overall panel, the mesh opening is the spacing between wires, and the horizontal and vertical wire sizes are the thicknesses of the wires used in each direction. The surface finish describes the final coating applied to the wire for weather resistance and aesthetics.

Clearview Fencing Topping

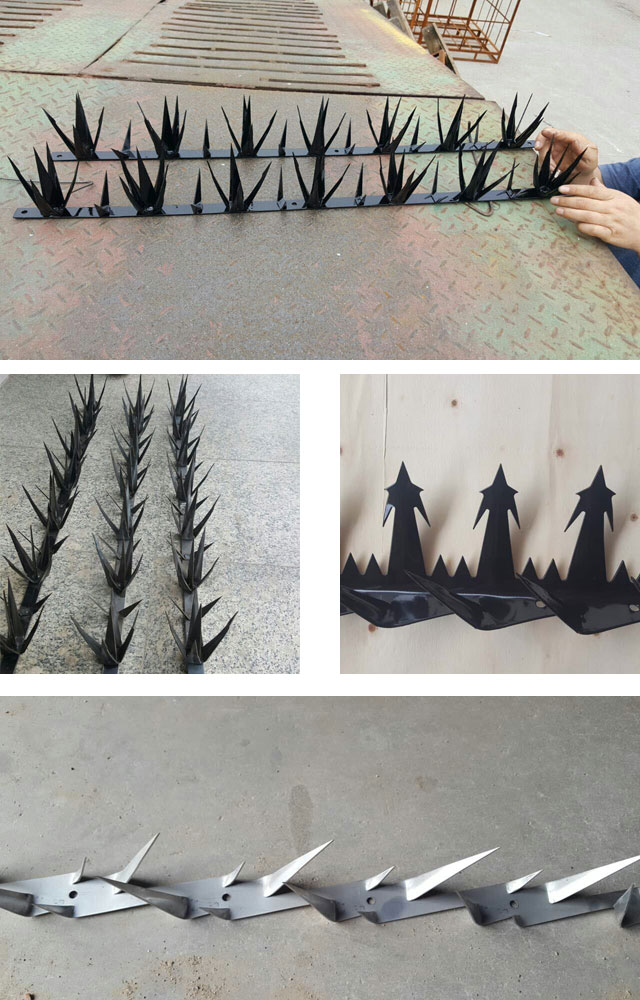

Wall Spikes

Wall spikes work well to stop people from climbing over fences, walls, roofs, and gates. You can add them easily to any existing structures. This boosts your property's safety without a lot of effort. To make them work best, attach them to walls or fences about 2 meters high or more. You can get them in galvanized or stainless steel. These types of wall spikes boost the safety of an already existing wall or security fence.

We offer wall spikes in a range of coatings or finishes. You can get them in small, medium, or large sizes. They're great for lots of different uses. You can use them in gardens, factories, airports, and other places where you have a security fence. They offer a lot of protection.

Here's what makes them great:

• They offer high levels of protection. It's almost impossible to climb over them.

• They're low cost and easy to install.

• They're galvanized to resist rusting, so they look good and don't rust.

• You can get an optional PVC powder coating in different colors.

• They have a double row of barbed wall spikes. This makes them really good at stopping intruders.

• They're easy to install and don't need a lot of upkeep.

You can use wall spikes for more than just home security. They're also great for industrial, commercial, and military use. They work well to protect the edges of walls, gates and fences, and building roofs.

Below is the specification table for Wall Spikes:

Topping Razor Wire

Razor wire, also known as barbed tape, is a type of security fencing wire constructed with sharp edges or points arranged at intervals along the strands. It is designed to deter and prevent unauthorized passage, serving as a physical and psychological barrier.

The straight type razor wire, in particular, is quick and straightforward to install. It provides a cost-effective solution to enhance the security of your clearview fence. Besides being economical, it effectively scares off and hinders potential intruders.

Razor wire is available in different styles, each having unique dimensions for thickness, wire diameter, barb length, barb width, and barb spacing. You can choose from various options depending on your specific security needs.

Our standard razor wire materials are either galvanized or stainless steel, ensuring durability and resistance against rust and environmental conditions.

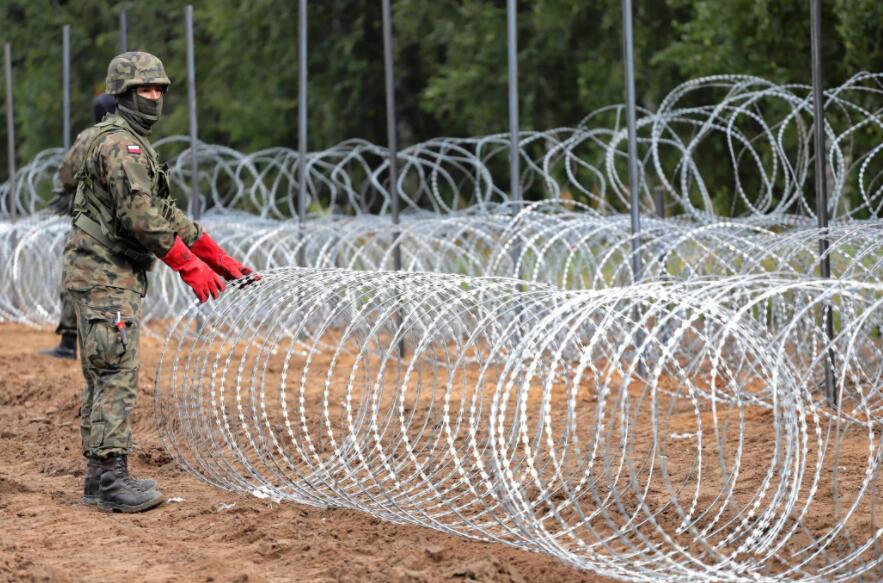

We also offer Barbed Tape Concertina (BTC) and Barbed Tape Obstacle (BTO), each available in several sizes and configurations. Each coil type has a specific diameter, number of loops, and standard length.

Here are the specifications for each type of razor wire:

Razor Blade Specification

Barbed Tape Wire Specification

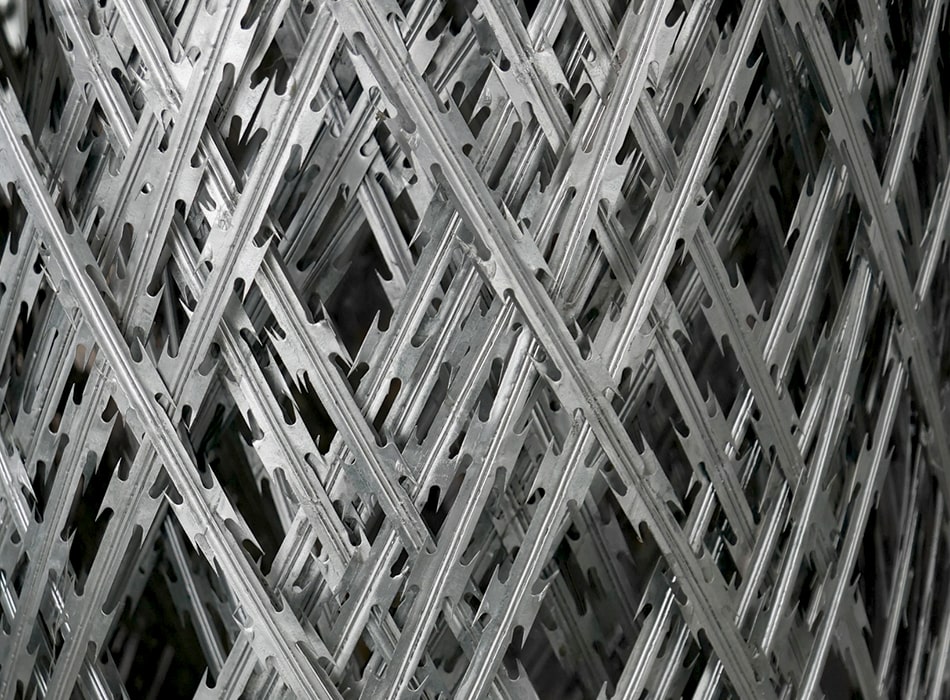

Razor Wire mesh fence

With the razor wire mesh fence, you can ensure the protection of your property. This highly safe and multi-purpose fencing system is built to keep out unwanted visitors. It deters climbers with its razor-filled spaces, offering a strong physical barrier. The design consists of straight blade netting connected in a diamond shape, making it an appealing and useful option for high-security needs.

You can quickly install the razor wire mesh fence on any existing or new clearview fence structure. It serves as the first layer of protection for securing a boundary. It comes in medium (standard-density) to ultra-high security (high-density) levels. The fence is available in different heights (1.2m, 1.8m, 2.1m, and 2.4m) and lengths (6m), providing a fast and efficient solution for residential, commercial, and industrial properties.

The high-density diamond razor wire mesh has a diamond pattern of 150mm high x 75mm across. The standard density diamond razor wire mesh has a diamond pattern of 300mm high x 150mm across.

Features:

• Anti-climbing design with sharp blade shape

• Tough welded structure with high-strength steel core wire that's tough to cut

• Zinc coating for better resistance to corrosion

• Easy-to-follow installation process

• Strong barrier with a clean look

choose the ultimate protection for your property with the razor wire mesh fence. For more details on size options and benefits, please get in touch with us.

​choose Your Option Below: Aperture Size: Standard density 300mm x 150mm Sheet Height: Height 2.4m Length 6.0m

Welded Razor Wire Mesh Specification

clearview fence with double vertical wire provides an ideal solution for high-security perimeter and access control applications, such as:

• Prison perimeter areas.

• Military sites and government facilities.

• Electricity distribution sites.

• Airports, railways, roadways.

• Seaports.

• Fencing & intrusion detection projects.

• Hydel power project.

• Petroleum and chemical facilities.

• Wildlife sanctuaries.

• Warehousing facilities,

• clearvu clearview fence for School.

Anti-climb  fence price

• The clearvu Clearview fence is determined by the following aspects: raw material price, processing cost, and freight.

• Suppose your budget is limited, and the user environment requirements for corrosion and rust protection are not too high, for example, in desert areas. In that case, you can choose Galfan coating without PVC coating.

• If used in high corrosion and high humidity marine environments, you must choose clearvu Clearview Galfan coating and PVC coating fence to meet the requirements. Of course, the price is higher than just Galvan anti-climb fencing.

• In short, we recommend choosing the most durable option within your budget.
